YBX3系列高效率隔爆型三相异步电动机
产品概述
YBX3系列高效率隔爆型三相异步电动机是我公司自主研发设计的全封闭高效率隔爆型三相异步电动机。效率指标符合 GB 18613-2020《电动机能效限定值及能效等级》中3级电动机节能价值的规定。 本系列电动机符合国际标准 GB/T 3836.1《爆炸性环境第 1 部分:通过要求》和 GB 3836.2《爆炸性环境第 2部分: 由隔爆外壳“d”保护的设备》的规定。 本系列电动机制成隔爆型，适用于爆炸性气体环境中机械设备的电力驱动。防爆标志为 Ex db 1Mb,Ex db AT1-4)Gb,Ex db lB T(1-4)Gb,Ex dblIC T(1-4)Gb,温度组别为 T1、T2T3、T4。 本系列电动机机座号范围为 80-355，功率等级和安装尺寸符合 GB/T4772.11EC60072-1 和GB/T4772.2/EC60072-2标志的规定。类别:
产品附件:
产品描述
-
产品特点
产品主要有以下特点:
1、电动机主接线盒位于机座的顶部，可以左右旋转满足用户不同出线方式的要求;
2、机座号H160及以上的电机，可以根据用户需要提供不停机注排油装置，H250及以上提供定子测温装置(可选PTC或PT100)、轴承测温装置(PT100)、加热器;
3、及做好H160及以上电机，可根据用户需要提供底脚调整螺栓孔;
4、接线盒、机座、端盖和风罩的外形美观、样式新颖，并且有利于降噪和通风;
5、电动机采用热分级为155级(可选180级)绝缘系统，从而延长电机的使用寿命;
6、电动机工作制为S1，冷却方式为IC411，外壳防护等级为IP55;
7、适用于各种应用场合，如:“W”、“TH”、WTH"、“F1”“F2”“WF1”及“WF2”，其中:TH为湿热带;WTH为户外湿热带;F1为户内防中等防腐型;F2 为户内防强腐蚀型:WF1为户外防中等腐蚀型;WF2为户外防强腐蚀型;
8、电动机机座底部安装有防爆呼吸排水阀(卧室安装方式时 );

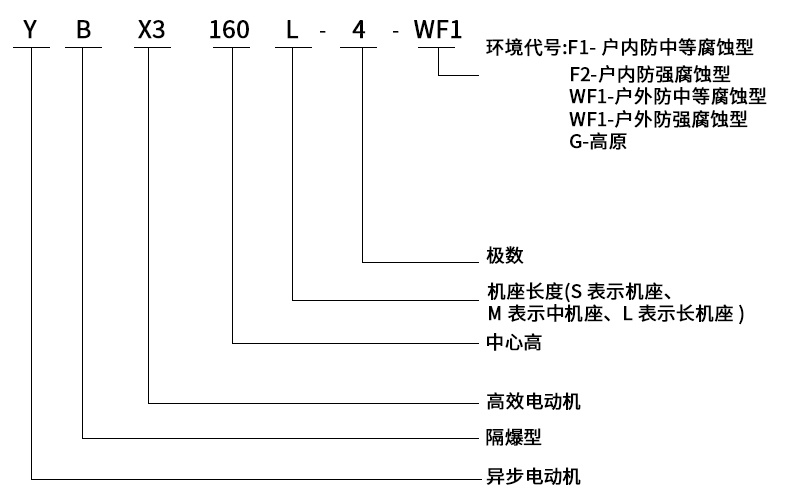

9、电动机的高质量保证了高的运行可靠性。 - 型号含义：
| 电机型号 Type No. |
额定功率 Rated output |
额定 转速 Rated speed (r/min) |
电流 IN(A) 380V/660V |
效率 EFF ŋ(%) |
功率 因素 Power factor cosφ |
堵转电流 额定电流 Locked current Rated current IST/TFL |
堵转转矩 额定转矩 Locked Torque Rated torque TST/TFL |
最大转 额定转矩 Max torque Rated torque TM/TFL |
| YBX3 | (kW) | |||||||
| 同步转速 Synhronous speed 3000r/min | ||||||||
| YBX3-63M1-2 | 0.18 | 2720 | 0.53/0.30 | 65.0 | 0.80 | 5.5 | 2.3 | 2.2 |
| YBX3-63M2-2 | 0.25 | 2720 | 0.69/0.40 | 68.0 | 0.81 | 5.5 | 2.3 | 2.2 |
| YBX3-71M1-2 | 0.37 | 2730 | 1.01/0.58 | 69.0 | 0.81 | 6.1 | 2.3 | 2.2 |
| YBX3-71M2-2 | 0.55 | 2730 | 1.38/0.79 | 74.0 | 0.82 | 6.1 | 2.3 | 2.3 |
| YBX3-80M1-2 | 0.75 | 2840 | 1.70/0.98 | 80.7 | 0.83 | 6.8 | 2.3 | 2.3 |
| YBX3-80M2-2 | 1.1 | 2840 | 2.43/1.40 | 82.7 | 0.83 | 7.3 | 2.3 | 2.3 |
| YBX3-90S-2 | 1.5 | 2850 | 3.22/1.86 | 84.2 | 0.84 | 7.6 | 2.3 | 2.3 |
| YBX3-90L-2 | 2.2 | 2850 | 4.58/2.64 | 85.9 | 0.85 | 7.8 | 2.3 | 2.3 |
| YBX3-100L-2 | 3 | 2870 | 6.02/3.46 | 87.1 | 0.87 | 8.1 | 2.3 | 2.3 |
| YBX3-112M-2 | 4 | 2890 | 7.8/4.5 | 88.1 | 0.88 | 8.3 | 2.3 | 2.3 |
| YBX3-132S1-2 | 5.5 | 2900 | 10.7/6.1 | 89.2 | 0.88 | 8.0 | 2.2 | 2.3 |
| YBX3-132S2-2 | 7.5 | 2900 | 14.2/8.2 | 90.1 | 0.89 | 7.8 | 2.2 | 2.3 |
| YBX3-160M1-2 | 11 | 2930 | 20.6/11.9 | 91.2 | 0.89 | 7.9 | 2.2 | 2.3 |
| YBX3-160M2-2 | 15 | 2930 | 27.9/16.0 | 91.9 | 0.89 | 8.0 | 2.2 | 2.3 |
| YBX3-160L-2 | 18.5 | 2930 | 34.1/19.7 | 92.4 | 0.89 | 8.1 | 2.2 | 2.3 |
| YBX3-180M-2 | 22 | 2950 | 40.5/23.3 | 92.7 | 0.89 | 8.2 | 2.2 | 2.3 |
| YBX3-200L1-2 | 30 | 2950 | 54.9/31.6 | 93.3 | 0.89 | 7.5 | 2.2 | 2.3 |
| YBX3-200L2-2 | 37 | 2950 | 67.4/38.8 | 93.7 | 0.89 | 7.5 | 2.2 | 2.3 |
| YBX3-225M-2 | 45 | 2960 | 81.7/47.1 | 94.0 | 0.89 | 7.6 | 2.2 | 2.3 |
| YBX3-250M-2 | 55 | 2960 | 99.6/57.3 | 94.3 | 0.89 | 7.6 | 2.2 | 2.3 |
| YBX3-280S-2 | 75 | 2970 | 135.2/77.8 | 94.7 | 0.89 | 6.9 | 2.0 | 2.3 |
| YBX3-280M-2 | 90 | 2970 | 161.7/93.1 | 95.0 | 0.89 | 7.0 | 2.0 | 2.3 |
| YBX3-315S-2 | 110 | 2980 | 197.3/113.6 | 95.2 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315M-2 | 132 | 2980 | 236.2/136.0 | 95.4 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315L1-2 | 160 | 2980 | 285.7/164.5 | 95.6 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315L2-2 | 200 | 2980 | 356.4/205.2 | 95.8 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355S1-2 | 185 | 2980 | 330.3/190.2 | 95.6 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355S2-2 | 200 | 2980 | 356.4/205.2 | 95.8 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355M1-2 | 220 | 2980 | 392.0/225.7 | 95.8 | 0.89 | 7.1 | 1.8 | 2.2 |
| YBX3-355M2-2 | 250 | 2980 | 440.5/253.7 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| YBX3-355L1-2 | 280 | 2980 | 493.4/284.1 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| YBX3-355L2-2 | 315 | 2980 | 555.1/319.6 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| 电机型号 Type No. |
额定功率 Rated output |
额定 转速 Rated speed (r/min) |
电流 IN(A) 380V/660V |
效率 EFF ŋ(%) |
功率 因素 Power factor cosφ |
堵转电流 额定电流 Locked current Rated current IST/TFL |
堵转转矩 额定转矩 Locked Torque Rated torque TST/TFL |
最大转 额定转矩 Max torque Rated torque TM/TFL |
| YBX3 | (kW) | |||||||
| 同步转速 Synhronous speed 1500r/min | ||||||||
| YBX3-63M1-4 | 0.12 | 1340 | 0.44/0.26 | 57.0 | 0.72 | 4.4 | 2.3 | 2.2 |
| YBX3-63M2-4 | 0.18 | 1340 | 0.62/0.36 | 60.0 | 0.73 | 4.4 | 2.3 | 2.2 |
| YBX3-71M1-4 | 0.25 | 1350 | 0.79/0.45 | 65.0 | 0.74 | 5.2 | 2.3 | 2.2 |
| YBX3-71M2-4 | 0.37 | 1350 | 1.12/0.64 | 67.0 | 0.75 | 5.2 | 2.3 | 2.2 |
| YBX3-80M1-4 | 0.55 | 1390 | 1.43/0.82 | 77.8 | 0.75 | 6.3 | 2.3 | 2.3 |
| YBX3-80M2-4 | 0.75 | 1390 | 1.84/1.06 | 82.5 | 0.75 | 6.5 | 2.3 | 2.3 |
| YBX3-90S-4 | 1.1 | 1400 | 2.65/1.53 | 84.1 | 0.75 | 6.6 | 2.3 | 2.3 |
| YBX3-90L-4 | 1.5 | 1400 | 3.56/2.05 | 85.3 | 0.75 | 6.9 | 2.3 | 2.3 |
| YBX3-100L1-4 | 2.2 | 1420 | 4.76/2.74 | 86.7 | 0.81 | 7.5 | 2.3 | 2.3 |
| YBX3-100L2-4 | 3 | 1420 | 6.34/3.65 | 87.7 | 0.82 | 7.6 | 2.3 | 2.3 |
| YBX3-112M-4 | 4 | 1430 | 8.4/4.8 | 88.6 | 0.82 | 7.7 | 2.3 | 2.3 |
| YBX3-132S-4 | 5.5 | 1450 | 11.4/6.6 | 89.6 | 0.82 | 7.5 | 2.0 | 2.3 |
| YBX3-132M-4 | 7.5 | 1450 | 15.2/8.7 | 90.4 | 0.83 | 7.4 | 2.0 | 2.3 |
| YBX3-160M-4 | 11 | 1450 | 21.5/12.4 | 91.4 | 0.85 | 7.5 | 2.0 | 2.3 |
| YBX3-160L-4 | 15 | 1450 | 29.1/16.8 | 92.1 | 0.85 | 7.5 | 2.0 | 2.3 |
| YBX3-180M-4 | 18.5 | 1470 | 35.3/20.3 | 92.6 | 0.86 | 7.7 | 2.0 | 2.3 |
| YBX3-180L-4 | 22 | 1470 | 41.8/24.1 | 93.0 | 0.86 | 7.8 | 2.0 | 2.3 |
| YBX3-200L-4 | 30 | 1470 | 55.9/32.2 | 93.6 | 0.87 | 7.2 | 2.0 | 2.3 |
| YBX3-225S-4 | 37 | 1480 | 68.8/39.6 | 93.9 | 0.87 | 7.3 | 2.0 | 2.3 |
| YBX3-225M-4 | 45 | 1480 | 83.4/48.0 | 94.2 | 0.87 | 7.4 | 2.0 | 2.3 |
| YBX3-250M-4 | 55 | 1480 | 100.4/57.8 | 94.6 | 0.88 | 7.4 | 2.0 | 2.3 |
| YBX3-280S-4 | 75 | 1480 | 136.3/78.5 | 95.0 | 0.88 | 6.7 | 2.0 | 2.3 |
| YBX3-280M-4 | 90 | 1480 | 161.4/92.9 | 95.2 | 0.89 | 7.0 | 2.0 | 2.3 |
| YBX3-315S-4 | 110 | 1485 | 196.8/133.3 | 95.4 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315M-4 | 132 | 1485 | 235.7/135.7 | 95.8 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315L1-4 | 160 | 1485 | 285.1/164.1 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315L2-4 | 200 | 1485 | 355.7/204.8 | 95.8 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355S1-4 | 185 | 1485 | 329.7/189.8 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355S2-4 | 200 | 1485 | 355.6/204.8 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355M1-4 | 220 | 1485 | 391.2/225.2 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355M2-4 | 250 | 1485 | 444.6/256.0 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355L1-4 | 280 | 1485 | 497.9/286.7 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355L2-4 | 315 | 1485 | 560.0/322.5 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| 电机型号 Type No. |
额定功率 Rated output |
额定 转速 Rated speed (r/min) |
电流 IN(A) 380V/660V |
效率 EFF ŋ(%) |
功率 因素 Power factor cosφ |
堵转电流 额定电流 Locked current Rated current IST/TFL |
堵转转矩 额定转矩 Locked Torque Rated torque TST/TFL |
最大转 额定转矩 Max torque Rated torque TM/TFL |
| YBX3 | (kW) | |||||||
| 同步转速Synhronous speed 1000r/min | ||||||||
| YBX3-71M1-6 | 0.18 | 880 | 0.74/0.43 | 56.0 | 0.66 | 4.0 | 1.9 | 2.0 |
| YBX3-71M2-6 | 0.25 | 880 | 0.95/0.55 | 59.0 | 0.68 | 4.0 | 1.9 | 2.0 |
| YBX3-80M1-6 | 0.37 | 890 | 1.30/0.75 | 62.0 | 0.70 | 4.7 | 1.9 | 2.0 |
| YBX3-80M2-6 | 0.55 | 890 | 1.58/0.91 | 73.6 | 0.72 | 4.7 | 1.9 | 2.1 |
| YBX3-90S-6 | 0.75 | 910 | 2.01/1.15 | 78.9 | 0.72 | 5.8 | 2.1 | 2.1 |
| YBX3-90L-6 | 1.1 | 910 | 2.83/1.63 | 81.0 | 0.73 | 5.9 | 2.1 | 2.1 |
| YBX3-100L-6 | 1.5 | 930 | 3.73/2.15 | 82.5 | 0.74 | 6.0 | 2.1 | 2.1 |
| YBX3-112M-6 | 2.2 | 940 | 5.36/3.09 | 84.3 | 0.74 | 6.0 | 2.1 | 2.1 |
| YBX3-132S-6 | 3 | 960 | 7.20/4.14 | 85.6 | 0.74 | 6.2 | 2.0 | 2.1 |
| YBX3-132M1-6 | 4 | 960 | 9.5/5.5 | 86.8 | 0.74 | 6.8 | 2.0 | 2.1 |
| YBX3-132M2-6 | 5.5 | 960 | 12.7/7.3 | 88.0 | 0.75 | 7.1 | 2.0 | 2.1 |
| YBX3-160M-6 | 7.5 | 970 | 16.4/9.4 | 89.1 | 0.78 | 6.7 | 2.1 | 2.1 |
| YBX3-160L-6 | 11 | 970 | 23.7/13.7 | 90.3 | 0.78 | 6.9 | 2.1 | 2.1 |
| YBX3-180L-6 | 15 | 980 | 30.9/17.8 | 91.2 | 0.81 | 7.2 | 2.0 | 2.1 |
| YBX3-200L1-6 | 18.5 | 980 | 37.8/21.8 | 91.7 | 0.81 | 7.2 | 2.1 | 2.1 |
| YBX3-200L2-6 | 22 | 980 | 44.2/25.5 | 92.2 | 0.82 | 7.3 | 2.1 | 2.1 |
| YBX3-225M-6 | 30 | 980 | 60.6/34.9 | 92.9 | 0.81 | 7.1 | 2.0 | 2.1 |
| YBX3-250M-6 | 37 | 980 | 71.7/41.3 | 93.3 | 0.84 | 7.1 | 2.1 | 2.1 |
| YBX3-280S-6 | 45 | 980 | 84.9/48.9 | 93.7 | 0.86 | 7.2 | 2.1 | 2.0 |
| YBX3-280M-6 | 55 | 990 | 103.3/59.5 | 94.1 | 0.86 | 7.2 | 2.1 | 2.0 |
| YBX3-315S-6 | 75 | 990 | 141.7/81.6 | 94.6 | 0.85 | 7.0 | 2.0 | 2.0 |
| YBX3-315M-6 | 90 | 990 | 171.6/98.8 | 94.9 | 0.84 | 7.0 | 2.0 | 2.0 |
| YBX3-315L1-6 | 110 | 990 | 206.8/119.0 | 95.1 | 0.85 | 7.0 | 2.0 | 2.0 |
| YBX3-315L2-6 | 132 | 990 | 244.5/140.7 | 95.4 | 0.86 | 7.0 | 2.0 | 2.0 |
| YBX3-355S-6 | 160 | 990 | 292.3/168.3 | 95.6 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355M1-6 | 185 | 990 | 338.0/194.6 | 95.6 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355M2-6 | 200 | 990 | 364.6/210.0 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355L1-6 | 220 | 990 | 401.0/231.0 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355L2-6 | 250 | 990 | 455.7/262.4 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| 电机型号 Type No. |
额定功率 Rated output |
额定 转速 Rated speed (r/min) |
电流 IN(A) 380V/660V |
效率 EFF ŋ(%) |
功率 因素 Power factor cosφ |
堵转电流 额定电流 Locked current Rated current IST/TFL |
堵转转矩 额定转矩 Locked Torque Rated torque TST/TFL |
最大转 额定转矩 Max torque Rated torque TM/TFL |
| YBX3 | (kW) | |||||||
| 同步转速Synhronous speed 750r/min | ||||||||
| YBX3-80M1-8 | 0.18 | 630 | 0.88/0.51 | 51.0 | 0.61 | 3.3 | 1.8 | 1.9 |
| YBX3-80M2-8 | 0.25 | 650 | 1.15/0.66 | 54.0 | 0.61 | 3.3 | 1.8 | 1.9 |
| YBX3-90S-8 | 0.37 | 670 | 1.49/0.86 | 62.0 | 0.61 | 4.0 | 1.8 | 1.9 |
| YBX3-90L-8 | 0.55 | 670 | 2.17/1.25 | 63.0 | 0.61 | 4.0 | 1.8 | 2.0 |
| YBX3-100L1-8 | 0.75 | 690 | 2.48/1.43 | 68.7 | 0.67 | 4.0 | 1.8 | 2.0 |
| YBX3-100L2-8 | 1.1 | 690 | 3.53/2.03 | 70.7 | 0.67 | 5.0 | 1.8 | 2.0 |
| YBX3-112M-8 | 1.5 | 690 | 4.41/2.54 | 72.8 | 0.71 | 5.0 | 1.8 | 2.0 |
| YBX3-132S-8 | 2.2 | 710 | 6.04/3.48 | 77.9 | 0.71 | 6.0 | 1.8 | 2.0 |
| YBX3-132M-8 | 3 | 710 | 7.91/4.56 | 78.9 | 0.73 | 6.0 | 1.8 | 2.0 |
| YBX3-160M1-8 | 4 | 720 | 10.4/6.0 | 79.9 | 0.73 | 6.0 | 1.9 | 2.0 |
| YBX3-160M2-8 | 5.5 | 720 | 13.8/8.0 | 82.0 | 0.74 | 6.0 | 1.9 | 2.0 |
| YBX3-160L-8 | 7.5 | 720 | 18.1/10.4 | 84.0 | 0.75 | 6.0 | 1.9 | 2.0 |
| YBX3-180L-8 | 11 | 720 | 25.8/14.9 | 86.4 | 0.75 | 6.5 | 2.0 | 2.0 |
| YBX3-200L-8 | 15 | 730 | 34.5/19.9 | 86.9 | 0.76 | 6.6 | 2.0 | 2.0 |
| YBX3-225S-8 | 18.5 | 740 | 41.5/23.9 | 89.1 | 0.76 | 6.6 | 1.9 | 2.0 |
| YBX3-225M-8 | 22 | 740 | 47.8/27.5 | 89.6 | 0.78 | 6.6 | 1.9 | 2.0 |
| YBX3-250M-8 | 30 | 740 | 63.8/36.8 | 90.4 | 0.79 | 6.5 | 1.9 | 2.0 |
| YBX3-280S-8 | 37 | 740 | 78.3/45.1 | 90.9 | 0.79 | 6.6 | 1.9 | 2.0 |
| YBX3-280M-8 | 45 | 740 | 94.7/54.5 | 91.4 | 0.79 | 6.6 | 1.9 | 2.0 |
| YBX3-315S-8 | 55 | 740 | 113.2/65.2 | 92.3 | 0.80 | 6.6 | 1.8 | 2.0 |
| YBX3-315M-8 | 75 | 740 | 152.8/88.0 | 93.2 | 0.80 | 6.4 | 1.8 | 2.0 |
| YBX3-315L1-8 | 90 | 740 | 182.8/105.3 | 93.5 | 0.80 | 6.4 | 1.8 | 2.0 |
| YBX3-315L2-8 | 110 | 740 | 218.0/125.5 | 93.5 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355S-8 | 132 | 740 | 260.7/150.1 | 93.8 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355M-8 | 160 | 740 | 315.4/181.6 | 94.0 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355L1-8 | 185 | 740 | 364.7/210.0 | 94.0 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355L2-8 | 200 | 740 | 388.7/233.8 | 94.2 | 0.83 | 6.4 | 1.8 | 2.0 |
| 同步转速Synhronous speed 600r/min | ||||||||
| YBX3-315S-10 | 45 | 590 | 99.9/59.6 | 91.2 | 0.75 | 6.2 | 1.3 | 2.0 |
| YBX3-315M-10 | 55 | 590 | 121.4/69.9 | 91.8 | 0.75 | 6.2 | 1.3 | 2.0 |
| YBX3-315L1-10 | 75 | 590 | 162.4/93.5 | 92.3 | 0.76 | 6.2 | 1.3 | 2.0 |
| YBX3-315L2-10 | 90 | 590 | 191.2/110.1 | 92.9 | 0.77 | 6.2 | 1.3 | 2.0 |
| YBX3-355S-10 | 90 | 590 | 191.2/110.1 | 92.9 | 0.77 | 6.2 | 1.3 | 2.0 |
| YBX3-355M1-10 | 110 | 590 | 230.2/132.5 | 93.1 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355M2-10 | 132 | 590 | 275.0/158.3 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355L1-10 | 160 | 590 | 333.3/191.9 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355L2-10 | 185 | 590 | 385.4/221.9 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
